Description

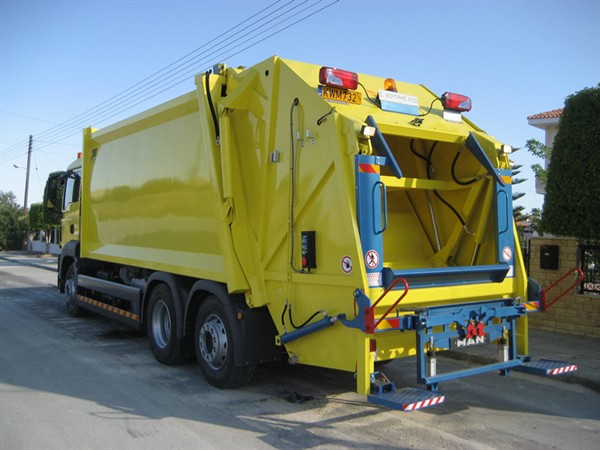

• Following the continues technological improvements, S. Houtris and Sons Ltd continuously upgraded and develop in RCV field as well as in its area of application. The NEW Series SHPC, characterized by its quality and reliability that always offer.

• SHPC compaction system based in pendulum design ensure the most effective compaction results, maintenance free system and much lower sound emissions, positioned the SHPC in the highest level on its category.

• Its "Environmental friendly Character" has been confirm with the extremely low sound emissions (73.5dB) results, achieved due to its optimum design.

• The SHPC design according to a series of EU Standards& Directives, marked with CE and guarantee its efficiency due to its robust and reliable design.

• SHPC is design to satisfy a high range of waste material (mixed waste, domestic, industrial, recycle material etc). This is occur due to the multifunctional operation that SHPC has continuously or discontinuously compaction operation.

• Its custom made bin lifting device allows to emptying all common bins which are comply with EN and/or DIN standards.

Main Features

• Design according to the latest edition of EN 1501-1 & EN 1501-4

• Low sound levels 73.5dB

• Safety systems on workers foot-step.

• Bin lifter can load bins of 80lt to 360 lt (as pair) and four wheel bins 1300lt. (EN 840-1/2/3)

• Bin lifter mechanism can tilt up to 50 degrees.

• Compaction operation continues while bins are fully tilted.

• Waste liquids collected into a 250-500 lt tank below hopper.

• Equipped with high pressure washing system and / or disinfection system (optional).

• Equipped with Color Rear view System

• Sound warning during waste discharge.

• Electronically controlled by PLC

• Equipped with weighting system (optional).

• CE Marking Certification.

• Built in Safety bar for maintainace

• High quality/reliability seal.

• On ergonomic position, a water tank is installed for workers.

• Material unloading can be completed using a double acting telescopic cylinder either by cab controls or side controls.

• Ejection plate withdraws gradually to keep the material compressed all time.

• … and much more, ask our technical department.

Technical Features

• Hopper made of HARDOX 400-450, 6mm

• Container floor made of HARDOX 400-450, 4 or 5mm

• Hopper Volume: 1.7m3

• Compaction ratio: 7:1 / 500Kg / m3

• Working Pressure: 170 Bar

• Compaction Cycle time: 23 sec

EU Standards & Directives

• EN 292-1&2: Safety and Machinery

• EN 294: Safety Distances



• EN 288: Welding Procedures

• 2006/42/EC: Machinery Directive

• 89/336/EEC: Electromagnetic Compatibility

• 2000/14/EEC:Noise Emission Directive

• ΕΝ 349 : Minimum gaps to avoid crushing of parts of the human body

• ΕΝ 1501-1: 1998 + Α2:2009 : Refuse collection vehicles and their associated lifting devices - General requirements and safety requirements.

• ΕΝ 1501-4: 2007: Refuse collection vehicles and their associated lifting devices – Noise Test Code.
